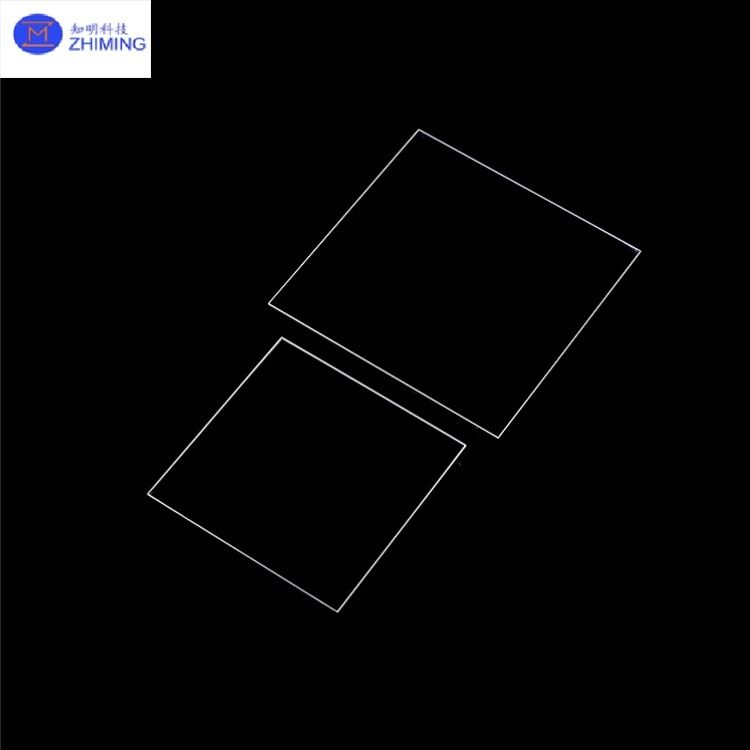

Quartz Glass Optical Windows JGS1/JGS2 Grade Coating Optional 8.2mm Thickness
Quartz windows are optical components made from high-purity silicon dioxide (SiO₂), featuring broad-spectrum transmission from UV to IR, high-temperature resistance, and low thermal expansion. These properties make them ideal for scientific research, industrial inspection, laser systems, and medical equipment. The quartz optical window (8.2mm thickness) is a high-purity fused silica (SiO₂) optical element with excellent light transmittance, thermal stability, and chemical inertness, suitable for UV, visible, and IR optical systems. ZMSH offers a full range of quartz windows, including standard sizes (round, square) and customized products (special-shaped, drilled, or irregularly shaped windows), supporting OEM machining to meet stringent optical and mechanical requirements.
Specifications of quartz optical window (8.2mm Thickness)
| Parameter |
Specification |
| Material |
High-purity fused silica (JGS1/JGS2) |
| Thickness |
8.2mm (±0.05mm tolerance) |
| Diameter |
10–300mm (customizable) |
| Surface Accuracy |
λ/10 @632.8nm |
| Parallelism |
≤1 arcmin (customizable to ≤30 arcsec) |
| Flatness |
≤λ/4 @632.8nm |
| Transmittance |
>90% (185nm–2.5μm) |
| Surface Quality |
40/20 scratch-dig (upgradable to 10/5) |
| Coating Options |
UV/VIS/IR AR/HR coatings |
| CTE |
5.5×10⁻⁷/°C (0–300°C) |
| Temp. Range |
-60°C to +1100°C (short-term) |
Note: Free technical consultation and prototype samples available. Contact us for detailed datasheets and machining solutions.
Product Features of quartz optical window (8.2mm Thickness)
1. Material Properties
· High Transmittance: >85% in UV (185-400nm), >90% in visible light, >80% in IR (2.5-3.5μm).
· High-Temperature Resistance: Softening point at 1730°C, short-term tolerance up to 1450°C, CTE as low as 0.3-0.7×10⁻⁶/°C (25-300°C).
· Chemical Stability: Resistant to strong acids (30x better than ceramics), some models withstand HF corrosion.
2. Optical Performance
· Broad Spectrum: JGS1 (185-2500nm), JGS2 (200-2500nm), JGS3 (260-3500nm) for varied spectral needs.
· Low Scattering: Surface roughness Ra ≤0.5nm (CMP polished), wavefront distortion ≤λ/20@632.8nm.
3. Mechanical Properties
· High Hardness: Mohs 7-9, scratch-resistant.
· Precision Dimensions: Diameter tolerance ±0.02mm, thickness tolerance ±0.1mm, parallelism <3 arcmin.
Applications of quartz optical window (8.2mm Thickness)
| Application Field |
Key Properties |
Specific Uses |
Advantages of 8.2mm Thickness |
| Laser Optical Systems |
>90% transmittance, Low CTE (5.5×10⁻⁷/°C) |
Protective windows for CO₂/UV lasers |
Optimal mechanical strength and thermal stability for long-term operation |
| Semiconductor Equipment |
JGS1/JGS2 grade purity, Chemical inertness |
Inspection windows for lithography/etching tools |
Withstands high pressure and corrosive process environments |
| Spectroscopic Instruments |
Broadband transmission (185-2500nm) |
Beam entrance/exit windows for spectrometers |
Ensures optical stability and long-term durability |
| High-Temperature Monitoring |
Short-term resistance to 1100°C |
Viewports for furnaces/combustion chambers |
Provides thermal insulation and mechanical support |
| Medical Laser Devices |
Biocompatibility, λ/10 surface accuracy |
Output windows for therapeutic lasers |
Balances safety requirements with optical performance |
Quartz wafer recommendation of ZMSH
Quartz wafers (fused silica) are critical substrates for semiconductors, MEMS, and optoelectronics, offering ultra-low CTE and high-frequency dielectric performance. ZMSH supplies 2-12 inch quartz wafers in bulk, supporting custom dimensions, thicknesses, and surface treatments (polishing, coating, etching).
FAQ of quartz optical window (8.2mm Thickness)
