END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm

Name: END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm
Brand: SHANGHAI FAMOUS TRADE CO.,LTD
SKU: END PUMP LASER MARKING MACHINE
Price: 50,002.00 USD
Availability: InStock

Productdetails

Place of Origin: CHINA

Merknaam: ZMSH

Certificering: rohs

Model Number: END PUMP LASER MARKING MACHINE

Betalings- en verzendvoorwaarden

Minimum Order Quantity: 5

Prijs: by case

Delivery Time: 3-6 months

Payment Terms: T/T

Supply Ability: 1000pcs per month

Krijg Beste Prijs

Productdetails

Productomschrijving

Markeren:

LASER POWER:	8W 10W 12W 15W 20W 25W 40W	LASER WAVE LENGTH:	1064nm
FREQUENCY RANGE:	5-200KHz	SPOT DIAMETER:	1.0mm
CARVING SPEED:	≤7000mm/s	WEIGHT:	≈90KG

LASER POWER:	8W 10W 12W 15W 20W 25W 40W
LASER WAVE LENGTH:	1064nm
FREQUENCY RANGE:	5-200KHz
SPOT DIAMETER:	1.0mm
CARVING SPEED:	≤7000mm/s
WEIGHT:	≈90KG

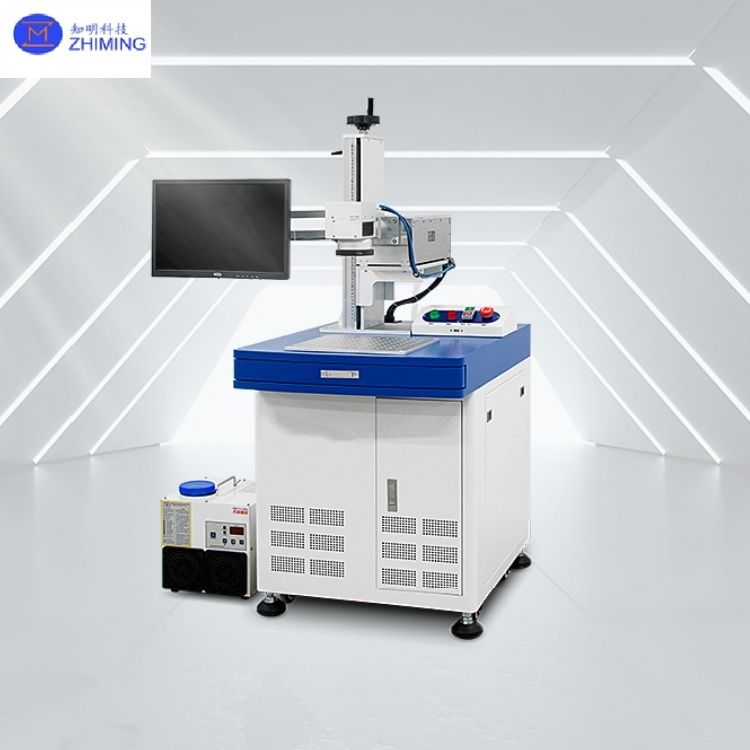

END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm

End-Pumped laser marking machine of core introduction

END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm

End-pump laser marking machines (officially termed semiconductor end-pumped laser marking systems) utilize end-pumping technology to achieve high-precision industrial marking. The system employs semiconductor laser diodes (LD) as pump sources, emitting 808nm pump light via optical fiber coupling into Nd:YVO₄ laser crystals. This excites Nd³⁺ ions in the crystals, generating 1064nm fundamental laser beams. These beams are amplified through resonant cavities (e.g., planar or folded cavities) to produce stable, high-quality outputs with M² ≤ 1.3 and peak power >60kW@10kHz. The device features a compact all-air-cooled design (no water cooling required), achieving 45%+ electro-optical conversion efficiency and 10,000-hour operational lifespan, making it a cornerstone in precision manufacturing.

End-Pumped laser marking machine of key technical parameters

LASER POWER	8W	10W	12W	15W	20W	25W	40W
LASER WAVE LENGTH	1064nm
FREQUENCY RANGE	5-200KHz
PULSE LENGTH	<20ns						<30ns
SPOT DIAMETER	1.0mm
BEAM QUALITY	<1.2		<1.3	<1.5			<1.8
POLARIZATION DIRECTION	100:1 horizontal
CARVING SPEED	≤7000mm/s
ENGRAVING RANGE	110mm*110mm (Custom optional)
ENGRAVING DEPTH	0.1mm-2.0mm (Depending on the material)
WORKING TEMPERATURE	15-35℃
COOLING WAY	Air cooling/Water cooling
WORK ENVIRONMENT	Dry, clean, and ventilated
POWER SUPPLY	AC220V/50Hz (Custom optional)
POWER CONSUMPTION	≥0.6KW		≥1KW		≥1.5KW
WEIGHT	≈90KG

End-Pumped laser marking machine of operational principles

END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm 1

1. Laser Generation:

Semiconductor pump sources (808nm) emit pump light, coupled via optical fibers into Nd:YVO₄ crystals.
Nd³⁺ ions undergo stimulated emission, producing 1064nm beams amplified through resonant cavities to achieve TEM00 fundamental mode outputs.

2. Material Interaction:

High-energy pulses (8-40ns) are focused to <0.01mm spot sizes via galvanometric scanners.
Photothermal ablation vaporizes surface materials without thermal diffusion, minimizing heat-affected zones (HAZ ≤5μm).

END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm 2

End-Pumped laser marking machine of technical advantages

END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm 3

1. Performance Superiority:

Precision: Minimum line width 0.01mm, repeatability ±0.001mm.
Stability: Closed-loop temperature control ensures <4% power fluctuation.

2. Economic Efficiency:

Low Power Consumption: 0.5-1.5kW total power (1/3 of fiber lasers).
Zero Consumables: No dyes/inks required, compliant with RoHS.

3. Operational Flexibility:

Modular design enables <1-hour module replacement.
Software compatibility with AutoCAD/CorelDraw, supporting batch processing and AI-based positioning.

End-Pumped laser marking machine of application domains

1. Electronics & Semiconductors:

Wafer Marking: 0.1mm characters on silicon wafers (acid/heat resistant).

PCB Drilling: Microvias with ±2μm accuracy.

2. Medical Devices:

Surgical Tools: QR codes on stainless steel instruments (surviving 1,000+ autoclave cycles).

Implant Tracking: Titanium alloy bone screws with biocompatible markings.

3. Automotive & Aerospace:

Engine Components: Aluminum/carbon fiber parts marked with high-contrast, wear-resistant codes.

Avionics: Tamper-proof serialization on circuit boards.

4. Consumer Goods:

Wearables: 0.1mm micro-engraving on smartwatch cases.

Luxury Packaging: Anti-counterfeit UV-reactive marks on perfume vials.

END PUMP LASER MARKING MACHINE 8W-40W laser wave length 1064nm 5

End-Pumped laser marking machine of FAQ

1. Q: What industries benefit most from end-pump laser marking machines?

A: Electronics, medical devices, and automotive sectors leverage end-pump lasers for precision marking on metals, plastics, and ceramics due to their <0.01mm resolution and eco-friendly cold processing.

2. Q: How do end-pump lasers outperform fiber lasers in marking?

A: End-pump lasers deliver <4% power fluctuation, 10,000-hour lifespan, and superior beam quality (M²≤1.3), ideal for heat-sensitive materials like glass and semiconductors.
