1 Inch Wafer Cassette 16mm Diameter 25-Piece Capacity for Wafer Transportation

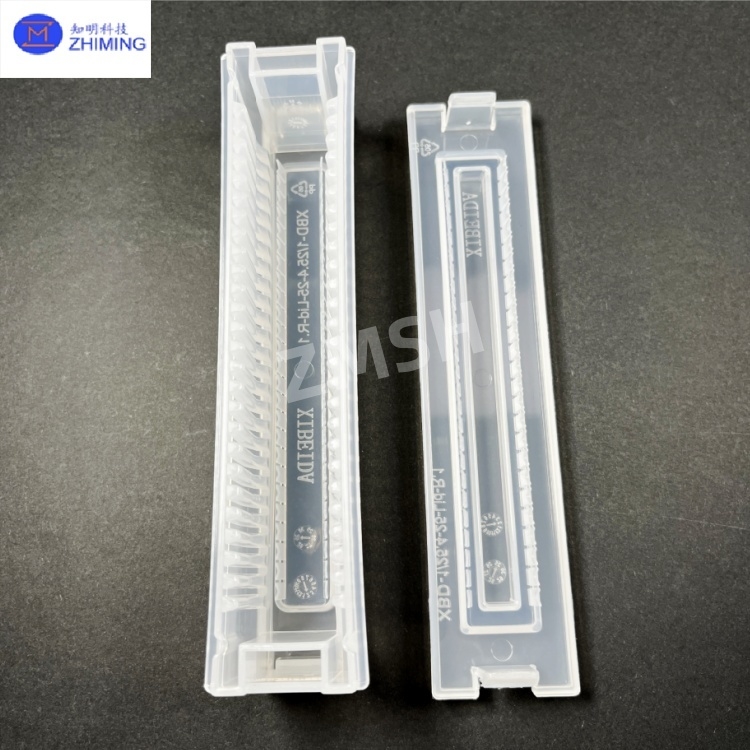

The 1-inch wafer cassette is a specialized container designed for the secure handling, transportation, and storage of small-diameter semiconductor wafers (1 inch). Its primary role is to provide physical protection, environmental isolation, and compatibility with automated systems, ensuring wafer integrity and process efficiency throughout semiconductor manufacturing workflows.
1 Inch Wafer Cassette Core Components and Design
1. Structural Design
- 1 Inch Wafer Cassette constructed from high-strength metals (e.g., stainless steel) or corrosion-resistant engineering plastics (e.g., PEEK, PTFE).
- Features precision-engineered slots or fixed grooves tailored to 1-inch wafers, minimizing mechanical stress and preventing wafer slippage or abrasion during transit.
2. Standardized Compatibility
- 1 Inch Wafer Cassette adheres to semiconductor industry dimensional standards (e.g., SEMI standards), enabling seamless integration with automated equipment such as robotic arms, conveyor systems, and equipment front-end modules (EFEM).
- Optimized for compatibility with AMHS (Automated Material Handling Systems) and wafer pod interfaces.
3. Functional Integration
- Advanced models incorporate tags or sensors for real-time tracking of wafer batches, process status, and location data.
1 Inch Wafer Cassette Key Features
1. Enhanced Physical Protection
- Electrostatic Discharge (ESD) Mitigation: 1 Inch Wafer Cassette utilizes ESD-safe materials (e.g., conductive coatings, fluoropolymers) to shield wafers from electrostatic damage.
- Shock Absorption: Silicone pads or rubberized inserts within grooves dampen vibrations and absorb impacts, critical for fragile 1-inch wafers.
2. Environmental Control
- Sealed Construction: 1 Inch Wafer Cassette prevents contamination from dust, humidity, and chemical vapors. Certain variants support vacuum or inert gas environments (e.g., nitrogen purging) for sensitive processes like lithography or etching.
- Temperature Resistance: 1 Inch Wafer Cassette operates reliably across a wide temperature range (-20°C to 150°C), accommodating high-temperature annealing or low-temperature storage requirements.
3. Automation-Ready Features
- Standardized Interfaces: Top-mounted mechanical gripper slots or alignment pins enable precise docking with robotic arms and EFEM systems.
- Positioning Locks: Magnetic or mechanical latches ensure wafers remain securely aligned during automated transfers, avoiding misalignment-induced equipment failures.
4. Cost Efficiency
- Lightweight design optimized for 1-inch wafers reduces material costs while maintaining durability, ideal for R&D and small-batch production.
1 Inch Wafer Cassette Primary Applications
1. Semiconductor R&D and Prototyping
- 1 Inch Wafer Cassette facilitates process validation in laboratories or pilot lines for advanced technologies like MEMS (Micro-Electro-Mechanical Systems) and sensors.
- 1 Inch Wafer Cassette supports critical steps such as photolithography, ion implantation, and dry etching.
2. Specialized Process Integration
- Wet Cleaning Processes: 1 Inch Wafer Cassette resists chemical corrosion during SC1 (Standard Cleaning 1) or SC2 (Standard Cleaning 2) treatments.
- High-Temperature Processes: Metal cassette variants endure thermal stress in annealing or diffusion furnaces.
3. Automated Production Lines
- Cassettes streamline batch tracking and equipment synchronization, optimizing production scheduling.
4. Education and Quality Control
- 1 Inch Wafer Cassette used in academic settings for demonstrating wafer dicing, packaging, and handling protocols.
- 1 Inch Wafer Cassette serves as a precision carrier for automated wafer inspection systems, ensuring positional accuracy during defect analysis.
